S Series Press
PREMIUM LINE
Stack-type flexographic printing machine for plastic film printing, available in configurations of 4,6,8 colors.
Features
|
|
Product Introduction
Top-tier performance. Unmatched precision. Built to lead.
When only the best will do, the S Series delivers.
Crafted with cutting-edge components and built to the highest standards, this series represents the ultimate in flexographic printing.
From anilox rollers for unmatched ink control, to high-speed motors and advanced tension systems, every detail is engineered for maximum efficiency, perfect registration, and flawless print quality – even at the fastest production speeds.
Ideal for high-demand production lines
Built for 24/7 operation with minimal downtime
Enhanced durability and long-term reliability
Includes advanced features and optional automation
Customized to meet regional production needs
This is the press for those who refuse to compromise.
S Series is more than a machine — it’s a statement of quality.
| Specification | SH-800MD | SH-1000MD | SH-1200MD |
|---|---|---|---|
| Number of colors | 4 or 6 or 8 colors | ||
| Material width | 800 mm | 1000 mm | 1200 mm |
| Printing width | 760 mm | 960 mm | 1160 mm |

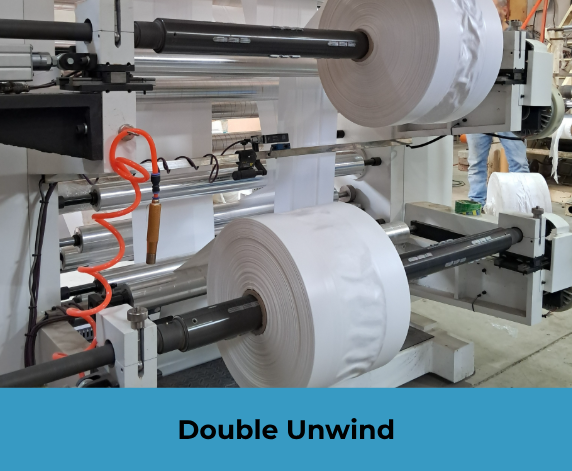

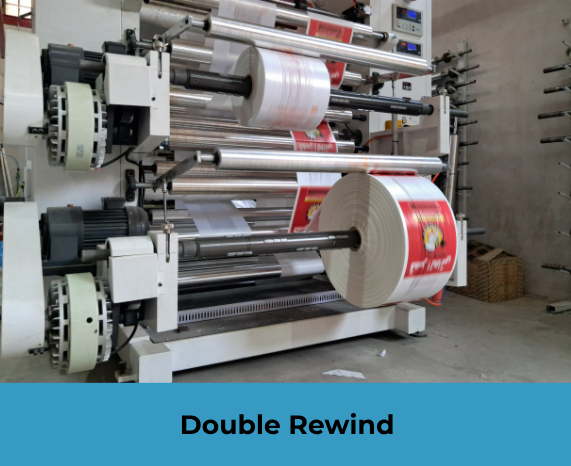

| Unwind / rewind | double unwind & double rewind - can change to single winders | ||
| Magnetic powder clutch | 2 pcs (10kg) | ||
| Printing length | 240mm-1000mm | ||
| Max unwind / rewind die | 800mm | ||
| Anilox type | Metal anilox 300LPI | ||
| Max machine speed | 120m/min | ||
| Max printing speed | 90m/min | ||

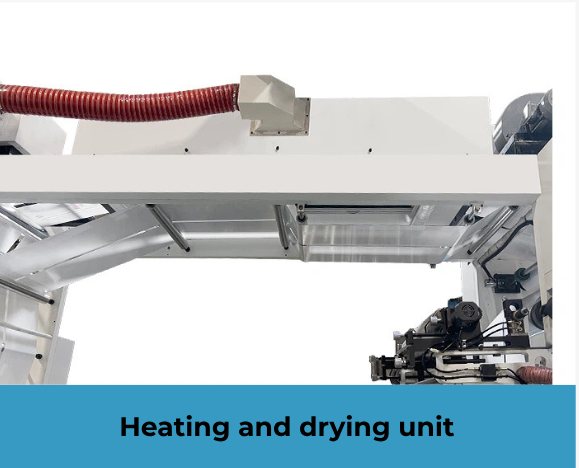

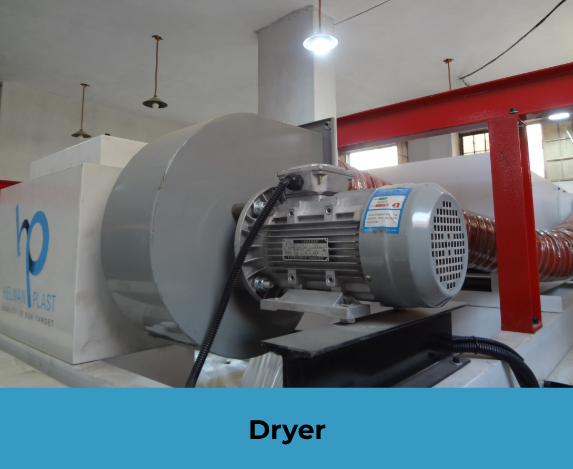

| Main dryer | 2.2kw air blower *2 unit | ||
| Drying modules between colors | 3 electric modules | ||

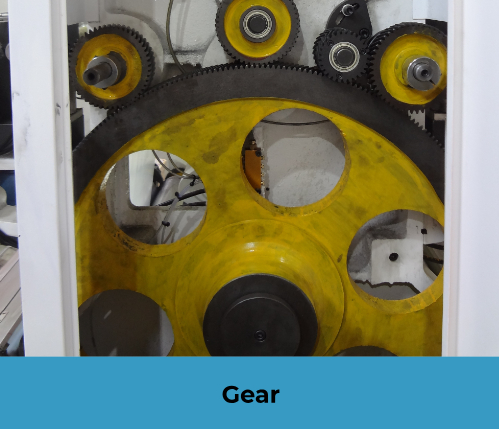

| Drive type | Gear drive | ||
| Auto tension controller | 4 pcs | ||

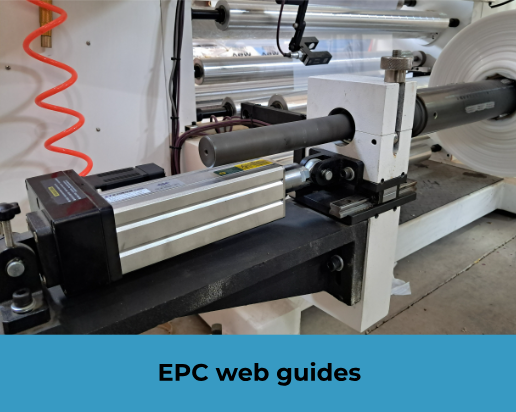

| Ultrasonic web guide system (EPC) | 2 pcs | ||
| Air shaft | standard | ||

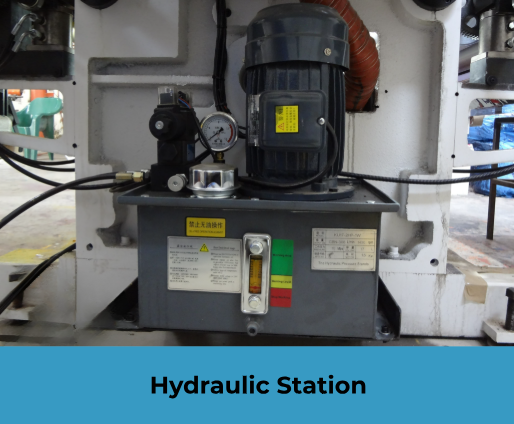

| Printing cylinders locking | Hydrolic | ||
| Over head crane | standard | ||
| Electrical supply | 380V. 50hz. 3ph | ||
| Registration precision | ±0.25 | ||
| Dimensions (L*W*H) | 5.4*2.2*2.8m | ||
| Machine weight | around 6 ton | ||
Video:
Detailed Images:
