Z Series Press
ECONOMY LINE
Stack-type flexographic printing machine for plastic film printing,
available in configurations of 2,4,6 colors.
Features

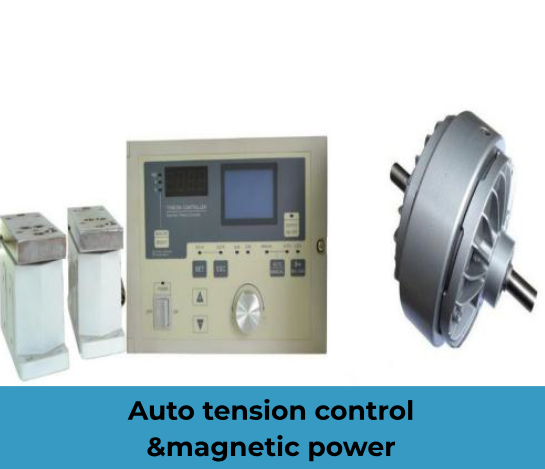

⦁ Unwind and Rewind with Auto Tension Control
⦁ Metal Anilox Roller (up to 300 LPI)
⦁ Printing speed up to 55 M/Min
⦁ EPC Web guide
⦁ Midrange price
⦁ Easy to use
⦁ Optional: Overhead crane
⦁ Optional: Corona Treatment
| Specification | ZH-800MD | ZH-1000MD | ZH-1200MD |
|---|---|---|---|
| Number of colors | 2 or 4 or 6 colors | ||
| Material width | 800 mm | 1000 mm | 1200 mm |
| Printing width | 760 mm | 960 mm | 1160 mm |
| Unwind / rewind | double unwind & double rewind - can change to single winders | ||
| Magnetic powder clutch | available | ||
| Max printing length | 200mm-1000mm | ||
| Max unwind / rewind die | 800mm | ||
| Anilox type | Metal anilox 300LPI | ||
| Max machine speed | 80m/min | ||
| Max printing speed | 50m/min | ||

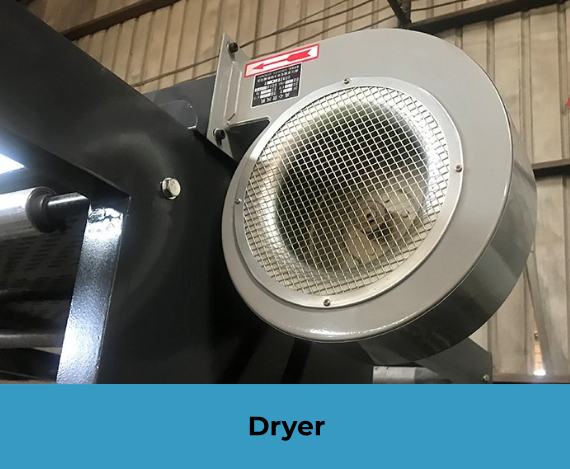

| Main dryer | 0.75kw air blower *2 unit | ||
| Drying modules between colors | 3 modules | ||
| Drive type | Gear drive | ||
| Auto tension controller | 4 pcs - optional | ||
| Ultrasonic web guide system (EPC) | 2 pcs - optional | ||
| Air shaft | optional | ||
| Printing cylinders locking | Hydrolic or pneumatic | ||
| Over head crane | optional | ||
| Electrical supply | 380V/220V | ||
| Registration precision | ±0.5mm | ||
| Dimensions (L*W*H) | 4.2m*2.1m*2.3m | ||
| Machine weight | around 3.6 ton | ||
Video:

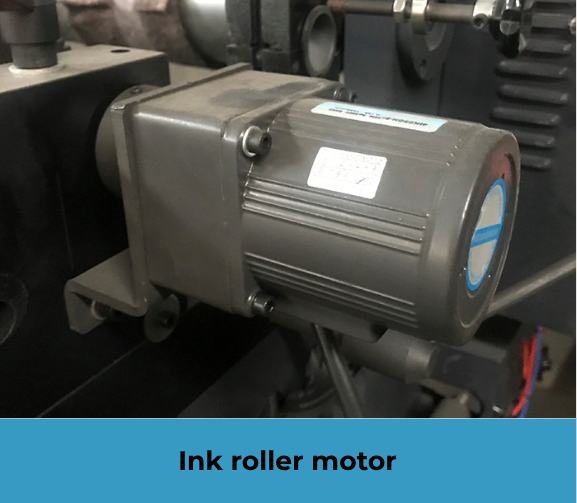

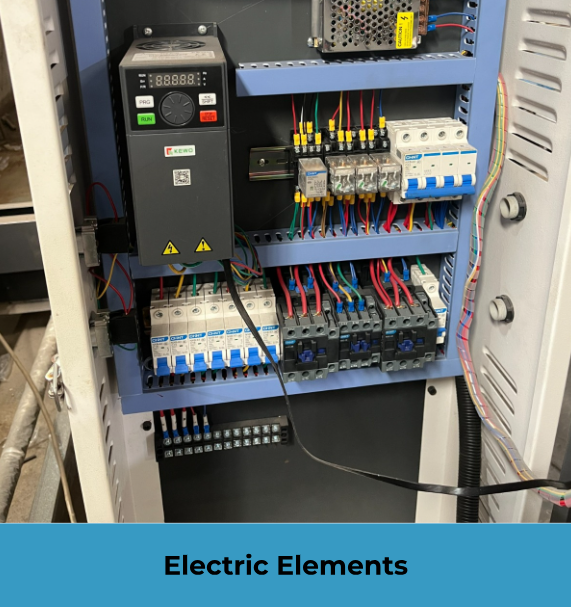

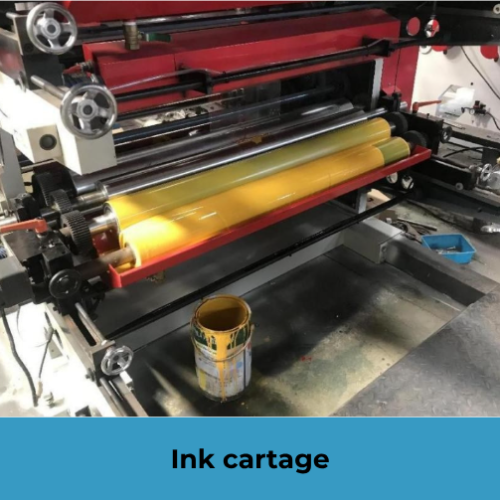

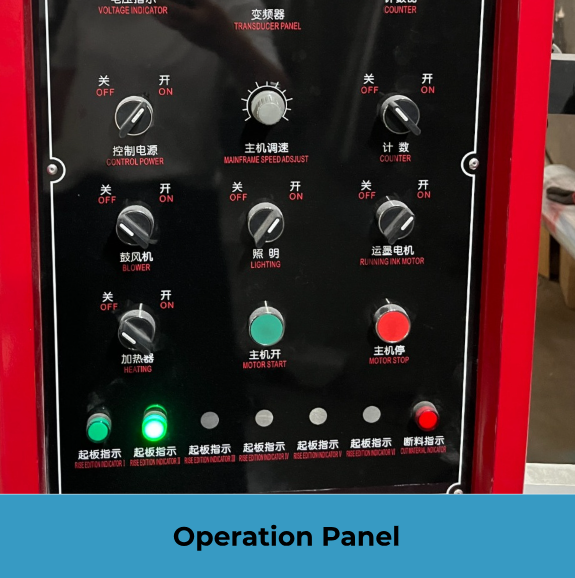

Detailed Images:
